Tried and tested, re-designed and upgraded.

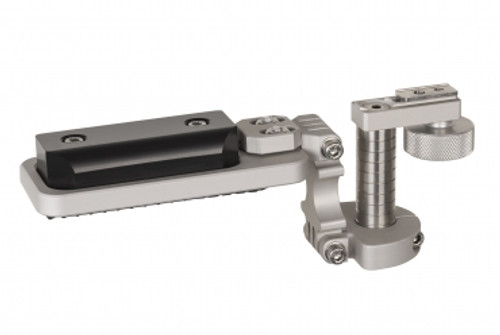

We have re-designed and technically upgraded our ahg palm rest FLEX. Four joints allow any possible adjustment. Each joint is fixed with a clamp and therefore no set adjustment on the other connections is lost. With the help of the scales any position can be marked and re-adjusted easily. Joint no. 1 serves the height adjustment and offers a 360 degree turn of the palm rest around the basis plate. Links no. 2.1 and 2.2 allow a continuous adjustment of the height of the palm rest. Please remember that the angle always has to be more than 45 degrees. Over joint no. 3 the palm rest can be turned 360 degrees so that the profiled rubber layered rest or the round edged plastic layered side can be used. This plastic layered block can be removed easily by loosening the 2 screws it is fixed with. You may replace this plastic block with an individual designed layer of your choice and fasten it with the threads already available on the rest. The premium milled palm rest made from high-grade steel and anodized alu will fit all UIT rails and is mounted in no time at all. All adjustments can be fixed with the supplied hex key.
weight: 430 g
Item Nr.: 101-9795
