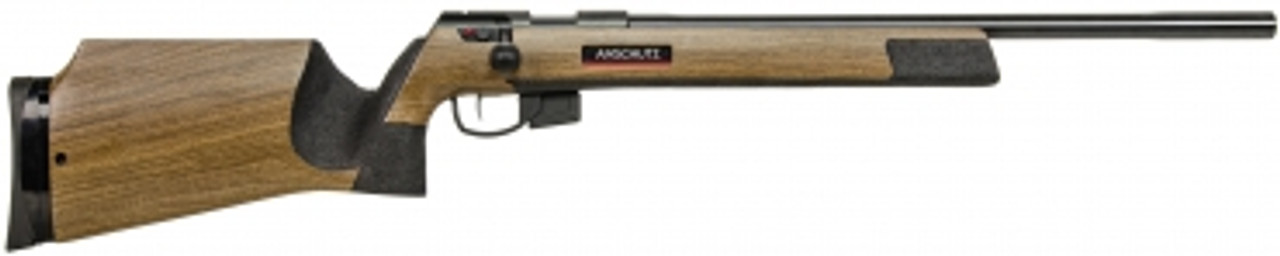

THE SILHOUETTE RIFLE
The ANSCHÜTZ smallbore rifle for shooting on metal silhouettes and targets. Receiver with an 11 mm ANSCHÜTZ prism rail and grooved barrel for attaching a front sight, so you can also shoot with sight set. Anatomically designed stock with cheek piece especially made for these disciplines. With non-slip and adjustable rubber butt plate and aluminum rail in the forend. The stock is prepared for the addition of a butt plate carrier to adjust the stock in length. Stippled checkering on pistol grip and forend.
FEATURES:
Receiver:
The foundation of our high precision rests on the barreled action design. Geometry inspired by our target rifles, with a high degree of stiffness, a flat supporting surface and an integrated recoil lug.The precision action is manufactured by highly demanding production processes and with gunsmiths expertise.
Signal Pin for visual proof of safety
11mm Anschutz dovetail
Integrated recoil lug on optic rail
Flat bedding surface
Bolt:
Roller bearing to reduce the force needed to open and to close the bolt.
25mm polymer bolt knob
Short 60 degree bolt throw
Three lug locking for highest safety and phenomenal precision
QPQ Coating to reduce ease of sliding, wear and corrosion protection
Trigger & Safety:
Adjustable ANSCHÜTZ two stage trigger 5061. Set at the factory to 300 g.
Light weight, hardened and finely lapped trigger parts allow for a fast, clean release.
Ergonomic and silent activating positive safety.
- Model Nr: 5061 Light
- Type: Two-Stage
- Version: right
- Color of the trigger shoe: Silver
- Safety: Sliding safety catch
- Trigger weight, adjusted (g): 300
- Adjustment of the trigger weight (mm): 250 - 450
Precision Barrel:
The Model 1761 MR R is delivered without sights, however, the barrel is machined with the ANSCHÜTZ 11 mm prism rail for mounting traget style sights. Ability to change caliber, the barrel can easily be changed*
With 2 tenon locking clamps, the barrel clamping allows for the barrel to be re-inserted with perfect precision - every time.
- Material: Steel
- Finish: blued
- Caliber: .22 l.r.
- Length of twist (mm): 420
- Number of grooves: 8
- Sights: 11mm dovetail for sight tunnel
- Muzzle diameter (mm): 22
- Barrel length (mm): 544
Optics & Mounts:
Receiver has a machined 11mm ANSCHÜTZ spec dovetail rail for mounting clamp style rings or target sights
Integrated recoil lug groove in the prism rail for mounting the optional picintanny rail to ensure maximum stability of the mount.
Magazine:

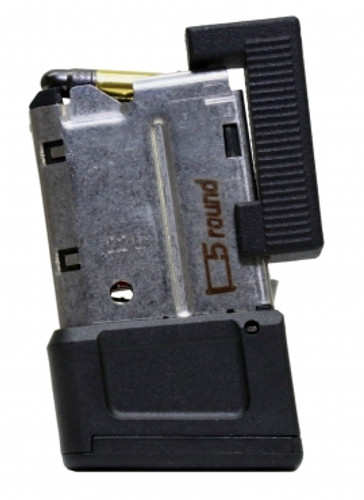

Single-stack,5-shot magazine with stainless steel housing.
Optimized magazine handling thanks to the release lever integrated into the trigger and the extended magazine base plate. High-strength magazine base plate made of weather and drop resistant polymer.
Stock & Action Bedding:
Stained and lacquered Walnut anatomically designed stock with cheek piece. With non-slip and adjustable rubber butt plate and aluminum handstop rail in the forend. The stock is prepared for the assembly of a butt plate carrier – to adjust the stock in length. Stippled checkering on pistol grip and forend. Flat bedding of the barreled action in the stock ensures the highest precision.
- Aluminuim grooved rail on the lower side: yes
- Version: right
- Length of stock (mm): 780
- Weight (g): 1900
- Material: Walnut
- Stippled checkering: yes
- Stock type: MS R
- Stock finish: laquered
- Butt plate: Rubber butt plate
- Length of pull (mm): 330
- Prepared for clamping element: yes
Item Nr.: 100-015540
PAL Required – Requires a valid PAL to purchase - NON-RESTRICTED FIREARM
Export - Restricted - Cannot ship outside of Canada
*Professional Gunsmith installation recommended
