Model 1771 - A scaled-down, short-action version of the Anschutz 1781
A made-to-scale repeater for predator and small game. The perfect fit for cartridges in .222REM & .223 Rem. This trim rifle is perfectly balanced and feels quite a home when shooting from the prone or standing position, even running shots on moving game, as well as on the bench. It is designed for highly precise shots, a familiar environment to our ANSCHÜTZ target rifles.
Once you shoot one, you will start to understand why the ANSCHÜTZ hunting repeaters are enjoying ever increasing popularity with hunters and shooters all over the world.
FEATURES
Action:
The 1771 features a traditional centerfire bolt layout with utilizing a three-lug bolt directly to the barrel; allowing a quick, short 60° bolt throw. The action is extraordinarily smooth and fast to function. It is equipped with an 0.43" wide, V-block riflescope mounting dovetail rail and a picatinny rail. There are additional drilled and tapped holes provided for scope mounting bases and rings. The one-piece firing pin has a defined end-stop area to prevent damage from dry firing.
Safety:
The cocking mechanism features gas vent holes, which in the event of cartridge failure, directs the gas safely to the side. The right-hand side, sliding safety catch, blocks the trigger sear in the safe position. The ergonomically designed safety catch is easily and silently operated. The bolt can also be opened in the safe position, allowing unloading the firearm with the safety engaged.
Trigger:
Our hunting triggers are hand crafted to the same precision as the match triggers in the ANSCHÜTZ target rifle. The low-weight, hardened and finely polished triggers enable a fast and precise release of the trigger. The target two-stage trigger found in the 1727 has set the standard for quality, reliability, and precision. It is not without reason that ANSCHÜTZ triggers are known as the best in the world. A masterpiece of the German Gunsmiths art.
Barrel:
The barrels are manufactured using the same special process perfected for the ANSCHÜTZ target rifles. The same also applies to the manufacturing process of the chamber. Detail is given to the fitting of the receiver and the counterbore at the muzzle.

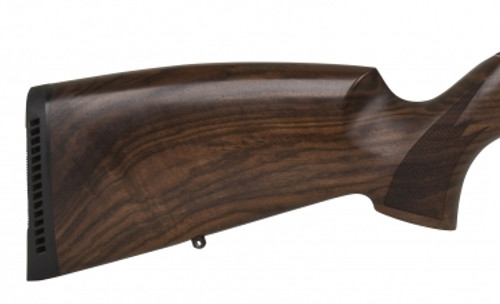

German Stock:
Oiled walnut stock, light German style stock with German cheek piece, Schnabel forend tip, non-slip checkering on the pistol grip and forend with borders. With black rubber butt pad and sling swivel studs.
SPECIFICATIONS
Model: 1771 German stock
Total length: 106 cm (41.7 in)
Weight: 3.6 kg (7.9 lbs)
Receiver:
Material: Steel
Bolt throw: 60 Degree
Locking: One row three locking lug (1x3)
Finish: Blued
Trigger:
Model Number: 5098/71
Type: Two stage trigger
Safety: Sliding safety catch on the right side
Adjustment of the trigger Blade: 17 mm (0.66 in)
Trigger Weight, Adjusted To: 300 g (10.6 oz/0.66 lbs)
Trigger Weight Adjustment Range: 300-800 g (10.6 – 28.2 oz)
Barrel:
Material: Steel
Finish: Blued
Caliber: .17 Hornet / .22 Hornet /.204 Ruger / .222 Rem / .223 Rem / .300 AAC Blackout
Number of grooves: 6
Barrel version: Medium Tapered
Barrel thread: N/A
Muzzle diameter: 18 mm (0.70 in)
Barrel length: 586 mm (23 in)
Stock:
Stock type: German
Length of stock: 795 (31.2 in)
Length of pull: 360mm (14 in)
Weight: 1250g (2.75 oz)
Material: Walnut
Stock color: Natural
Stock finish: Oiled
Butt plate: Ventilated rubber butt plate
Magazine:
Capacity: 4
Select Caliber Above
Item Nr.: 100-1771D586T
PAL Required – Requires a valid PAL to purchase - NON-RESTRICTED FIREARM
