Sightron engineers sought to create the perfect close-range hunting riflescope when designing the Sightron S1 1.75-5x32mm G2 riflescope. Using modern optical designs and manufacturing techniques, the S1 1.75-5x32mm G2 provides clear and sharp views in just about any lighting due to Sightron's all-glass lenses and exclusive MC-333 lens coatings. Sightron's precision focus eyepiece provides a customizable sight picture with extended eye relief. A compact, lightweight 1-inch aircraft aluminum tube houses an all-new erectortube system which is nitrogen charged, O-ring sealed, providing IPX7 waterproof and fog proof performance, and construction is 1,000G rated shockproof. All of this provides the ability to take the hunt to the field earlier and later than ever and handle whatever obstacles Mother Nature throws at you.
- NEW Optical Design for Close Range Hunting
- Compact, Lightweight 1-inch Aircraft Aluminum Tube
- Waterproof, Shockproof & Fogproof Design
- Classic Duplex Reticle Design
- Backed by Sightron’s Lifetime Performance Guarantee
In the Box:
Scope
Instruction Manual
Set of Lens Covers
Lens Cleaning Cloth
|
Exclusive Optical Design |
Using the right materials for the right applications, Sightron engineers build optical formulas around the best optical glass to reduce chromatic aberrations, improve color accuracy, while delivering excellent light transmission and best-in-class resolution and sharpness. |
|
Exclusive MC-333 Multi-Coating |
Sightron’s exclusive MC-333 multi-coated glass lenses provide clear and sharp viewing at any zoom range, while reducing flare, increasing contrast and light transmission providing additional time in the field. |
|
Second Focal Plane Reticle |
The reticle size remains constant at any zoom range. |
|
Reticle Material |
Wire reticle. |
|
Shockproof |
1,000G Shock rating supports even the highest calibers. |
|
Waterproof |
Rated at IPX7 waterproof standards. |
|
Fogproof |
Nitrogen gas charged for a lifetime of fog free use. |
|
Tube Construction |
Milled from a single piece of lightweight, aircraft grade aluminum. |
| Magnification | 3-9x |
| Objective Lens Diameter | 40mm |
| Eye Relief | 4.1 in - 3.3 in |
| Field of View | 40.4 ft - 13.3 ft |
| Tube Size | 1-inch |
| Turret Style | Capped Hunting |
| Zero Stop | No |
| Click Value | 1/4 MOA |
| Minutes Per Revolution | 15 MOA |
| Max Elevation Adjustment | 70 MOA |
| Max Windage Adjustment | 70 MOA |
| Parallax Setting | Parallax Free (100 Yards) |
| Focus Type | Fixed |
| Reticle Type | HHR (Hunter Holdover) |
| Focal Plane | Second Focal Plane |
| Illumination | No |
| Finish | Matte Black |
| Waterproof | Yes - IPX 7 rated |
| Anti-Reflection Tech | MC-333 Multi-Coatings |
| Fog Proof | Yes |
| Length | 11.9 inches |
| Weight | 13.6 ounces |
| Sunshade | Not Included |
| Item Number | 32002 |
| UPC Code | 793139320025 |

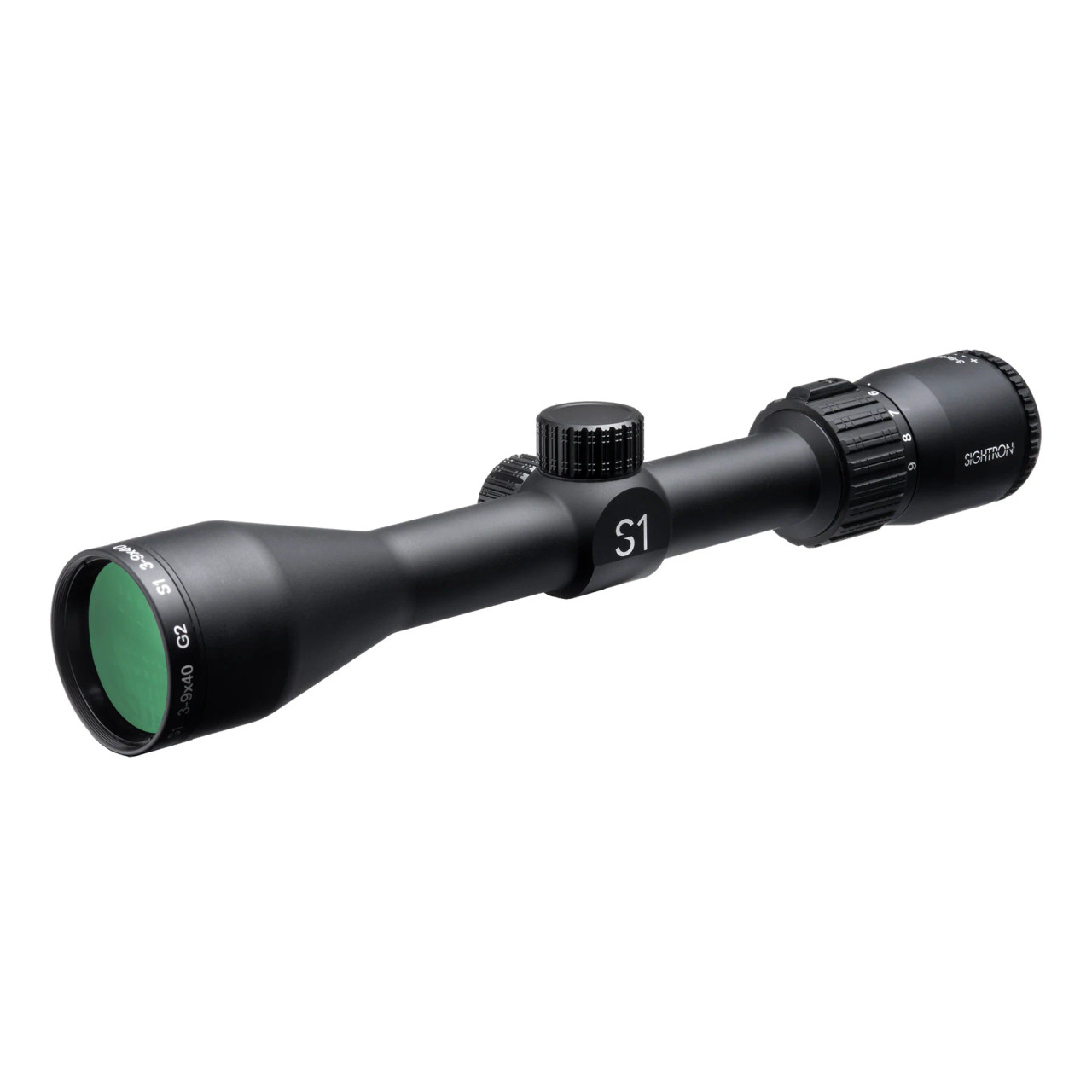

| Model Name | S1 3-9x40 G2 HHR |
| Instruction Manual (PDF) | DOWNLOAD |
| Reticle Instructions (PDF) | DOWNLOAD |
