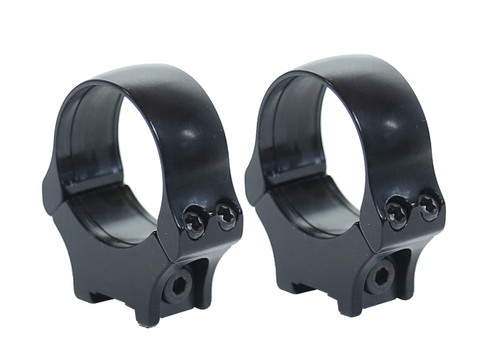

Designed for clamping to a receiver dovetail.
These economical mounts are still manufactured with the same precision as our top of the range model, the pivot mount
These will fit 1 inch (25.4mm) scope tubes but due to their design will also accomidate a 26mm scope tubes as well.
Specifically designed for small caliber rifles with dovetail
Outstanding compensation for weapon tolerances
Tension-free horizontal scope mounting
Body and ring caps made of aluminium with dovetail clamp jaw made of steel.
| Tube Diameter: | 25.4mm (1 In) or 26mm |

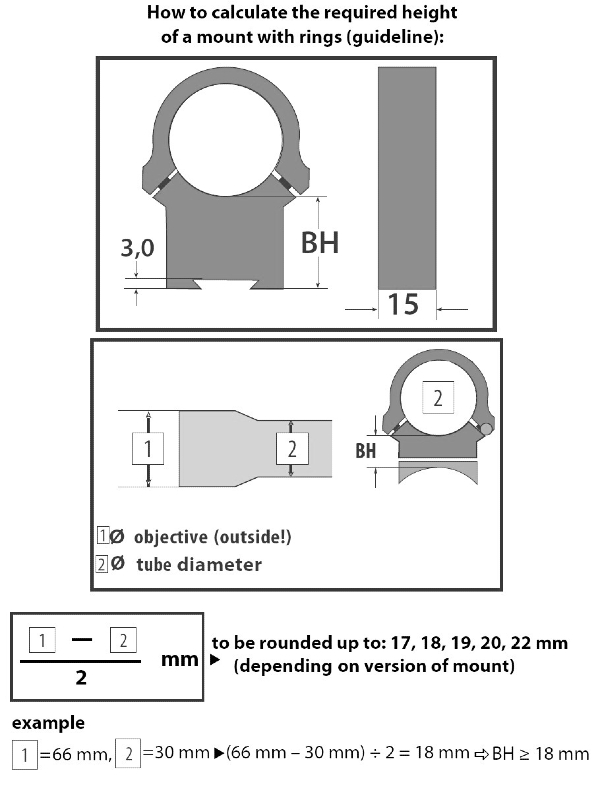

| Height (BH): | 9mm |
| Ring Width (RB): | 15mm |
| Extension (KR): | |
| Dovetail: | 11mm |
| Material: | Aluminum/Steel |
| Finish: | Matte |
Item Nr.: 318-470002609011
