EAW Quick-Loc Pivot Mount 30mm Anschutz 1771

SKU:
318-100030170260083
Weight:
0.35 KGS
Manufactured by:
EAW

Extra Fast Shipping! Order by 3PM AST and your order ships same day!

* Some regulated items may take longer to process.

$549.95
In Stock
EAW pivot mounts. The original.

EAW developed and launched the pivot mount over 50 years ago. This mount offers many advantages that make it one of the most popular types of mount available, which is why other manufacturers have copied it over time. EAW pivot mounts and pivot mounts with lever are designed to ensure absolute accuracy even under the toughest conditions.

The EAW "Quick-Loc" pivot mount is a precision made all steel mount with front ring leveling and rear ring windage adjustment. Exchangeable elevation blocks allow for stress free mounting and alignment with the bore. No more shimming. The scope can be removed and reattached for 100% repeatability for dependable performance. All parts are "stone tumbled" and blued that blends in with both gloss and matte scopes. Available for virtually any rifle and scope combination by using a variety of extension front rings.

Advantages
Mount height and eye relief freely configurable
Easily attach and remove scope mount with one hand, since the rear foot snaps automatically into the lock on our pivot mounts
Front foot and rear foot fit adjustable
Front foot has a large shear cross-section (approx. 3x that of claw mount) that prevents tilting and guarantees shooting stability even with large calibres
Horizontal adjustment with EAW pull-down support
Vertical adjustment by easily exchanging the rear foot sub-base in stages of 0.5 mm
Vertical tolerance compensation if there are weapon tolerances thanks to adjustable front foot
Consistent point of impact because the scope is tension-free, even if attached and removed multiple times
Ideal for second scopes and aiming devices


Fits:
Anschutz 1771

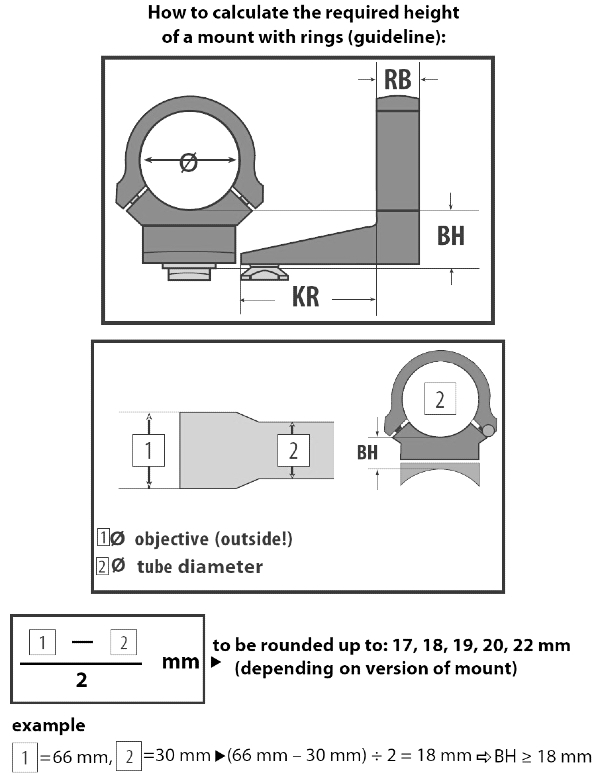

Tube Diameter: 30mm
Height (BH): 17
Width (RB): 15mm
Extension (KR): 26

Item Nr.: 318-100030170260083
